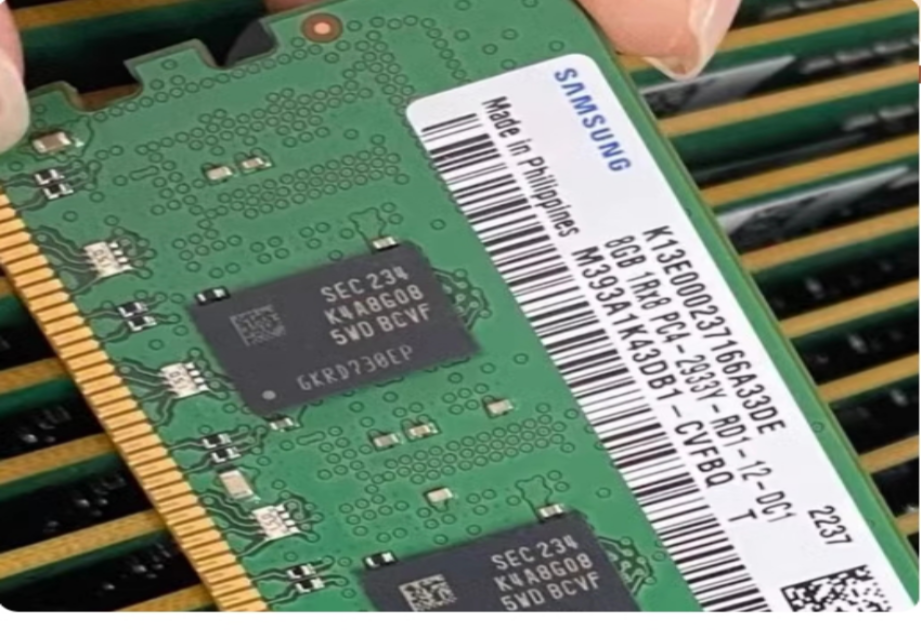

M393A1K43DB1-CVF 8GB DDR4-2933 ECC RDIMM Server Memory

M393A1K43DB1-CVF

share to:

Introduction

The M393A1K43DB1-CVF works as an 8GB DDR4 server memory module. It fits enterprise servers, data centers, virtualization platforms, databases, and other business computing systems. The module runs at speeds up to 2933 MT/s. It supplies reliable data transfer for steady server workloads.

The module is a Registered DIMM. The M393A1K43DB1-CVF has a register between the server memory controller and the DRAM components. This register holds clock, command, and control signals. It lowers the electrical load on the memory controller. This setup increases signal quality and system stability. It does this especially when many memory modules are installed.

The module supports ECC error correction technology. ECC can find and fix common memory errors during data transmission and processing. This keeps data accurate. It reduces sudden interruptions. It also raises overall server reliability.

The module features a 1Rx8 memory organization. The M393A1K43DB1-CVF provides 8GB capacity in a single module and operates at 1.2V. It is intended for compatible server and workstation platforms that support DDR4-2933 ECC Registered memory.

For customers sourcing reliable server memory products, we at Huaying Hengtong provides server memory solutions, product sourcing support, and configuration assistance for enterprise computing and data center requirements.

Before installation, users should verify the server motherboard, processor generation, supported memory type, maximum DIMM capacity, RDIMM compatibility, BIOS version, and memory population rules.

Specifications

Specification	Details
Product Model	M393A1K43DB1-CVF
Memory Type	DDR4
Module Type	Registered DIMM / RDIMM
Application	Server
Capacity	8GB
Memory Speed	2933 MT/s
Speed Classification	DDR4-2933 / PC4-23400
Memory Organization	1Rx8
Error Correction	ECC Supported
CAS Latency	CL21
Operating Voltage	1.2V
Form Factor	288-pin DIMM

Key Product Features

Stable Registered DIMM Architecture

The RDIMM register holds clock, command, and control signals. It does this before they reach the DRAM components. This helps the M393A1K43DB1-CVF keep stable communication between the memory module, memory controller, and processor. It performs well under demanding server workloads.

ECC Data Protection

ECC functionality finds and corrects common memory errors during server operation. This makes the module suitable for systems where data accuracy, workload continuity, and reliable operation are important.

DDR4-2933 Server Performance

The module offers 8GB capacity and a transfer rate of up to 2933 MT/s. This 8GB DDR4-2933 ECC RDIMM provides quick memory performance for compatible servers, virtualization environments, databases, and general enterprise workloads.

1Rx8 Memory Design

The 1Rx8 organization provides a single-rank configuration using x8 DRAM components. This design offers a balance between memory capacity, performance, power consumption, and compatibility. Actual operating speed depends on the processor, motherboard, BIOS, and memory population rules.

The M393A1K43DB1-CVF 8GB DDR4 server memory is a reliable option for compatible systems requiring DDR4-2933 performance, ECC protection, and stable Registered DIMM operation.
