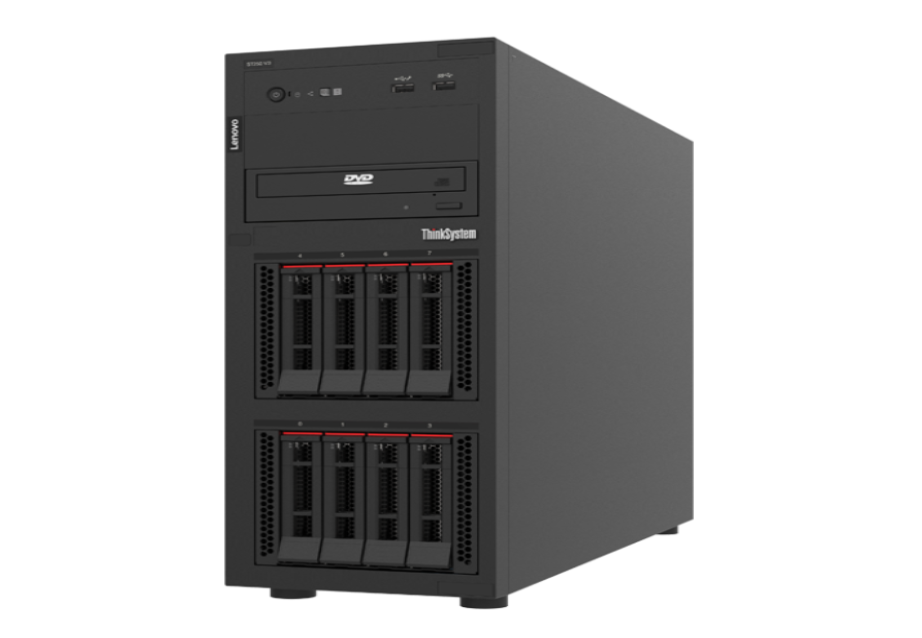

Lenovo ThinkSystem ST250 V3

share to:

Flexible Scalability to Support Business Growth

The needs of growing businesses can expand and change rapidly as their business evolves.

The Thinksystem ST250 V3 supports up to four PCIe slots (one of which is PCIe Gen5) and a variety of storage types, ranging from medium to large capacities.

Equipped with eight 3.5-inch or 16 2.5-inch drive bays and up to four PCIe slots, the ST250 V3 provides the flexibility to manage rapidly increasing data as growth progresses.

The ST250 V3 can also be rack-mounted or used as a standalone server, making it ideal for managing edge business applications.

Powerful and Energy-Efficient

The Lenovo ThinkSystem sT250 V3, powered by the Intel Xeon E-2400 processor and XClarity Systems Management, delivers high performance and easy manageability.

XClarity Systems Management provides rapid deployment and centralized management, reducing the need for on-site IT support. It also easily integrates with other ThinkSystem servers into existing networks.

The ThinkSystem sT250 v3 can be installed remotely and centrally managed through xClarity, requiring minimal on-site IT resources.

Secure, Stable, and Reliable Performance

The highly reliable ThinkSystem ST250 V3, part of the Lenovo x86 platform, has been ranked #1 in reliability by ITIC for nine consecutive years. With 99.999% to 99.9999% reliability, customers can trust the ST250 V3 to always support their business applications.

Lenovo has a strong reputation in the ST250 V3. Security is provided throughout the server’s lifecycle. Security is built into the design with a variety of physical security features. Servers are tracked through a secure supply chain with hardware and software roots of trust for secure deployment.

Thinkshield and Intel provide data security features to ensure secure server operation. At the end of its lifecycle, Lenovo offers asset recovery services for secure disposal options.

Introduction

Appearance/Height 4U chassis: Height: 430mm (16.9 inches), Width: 175mm (6.9 inches), Depth: 566mm (22.3 inches) Convertible to rackmount chassis
processor 1 Intel Xeon E-2400 processor, up to 8 cores, 95W power
Memory Up to 128GB in 4 DIMM slots using 32GB UDIMM 4400MHz TruDDR5
harddisk 4 or 8 3.5″ simple-swap SATA/SAS HDDs (up to 2 NVMe SSDs) · 4 or 8 3.5″ hot-swap SATA/SAS HDDs · 8 or 16 2.5″ hot-swap SATA/SAS HDDs · Hybrid 4x 3.5″ + 8x 2.5″ hot-swap SATA/SAS HDDs · 2x 5.25″ media bays (ODD/tape) · 1x internal USB 3.2 G1 (5Gb) · Optional 2x M.2 kits (SATA, located in PCIe slots)
Scalability Supports x8 ultra-thin, with two PCH PCle Gen4 x4 lanes PCle x4 slot, with PCH PCle Gen4 x4 lanes* PCle x16 slot, with CPU PCle Gen5 x16 lanes PCle x4 slot, with PCH PCle Gen4 x4 lanes PCle x8 slot, with PCH PCle Gen4 x4 lanes
network 2 x 1GbE embedded LOM 1 x 1GbE dedicated management
power supply Fixed 300W (Gold) / 500W (Titanium) Power Supply Unit (PSU) Redundant CRPS (Platinum) / CRPS (Titanium) Power Supplies Fixed and redundant PSUs ErP lot 9 compliant
Manageability Lenovo XClarity Controller 2; Root of Trust module with integrated platform firmware resilience, TPM 2.0; optional front lockable bezel; optional chassis intrusion switch
operating system Microsoft Windows Server, SUsE, Red Hat, VMware vSphere, Microsoft Windows 10/11 have been tested. Visit lenovopress.com/osig for more information.
GPU Optional NVIDIA Quadro T1000 or NVIDIA Quadro T400 GPU
port Front: 1x USB 2.0 (XCC Mobile); 1x USB 3.2 Gen1 (5Gb) Rear: 4x USB 3.2 Gen (5Gb) ports; 2x RJ45 Ethernet ports, 1x dedicated management port; 1x serial port, 1x VGA port NMI button
HBA/RAID support Support HW RAID adapter
