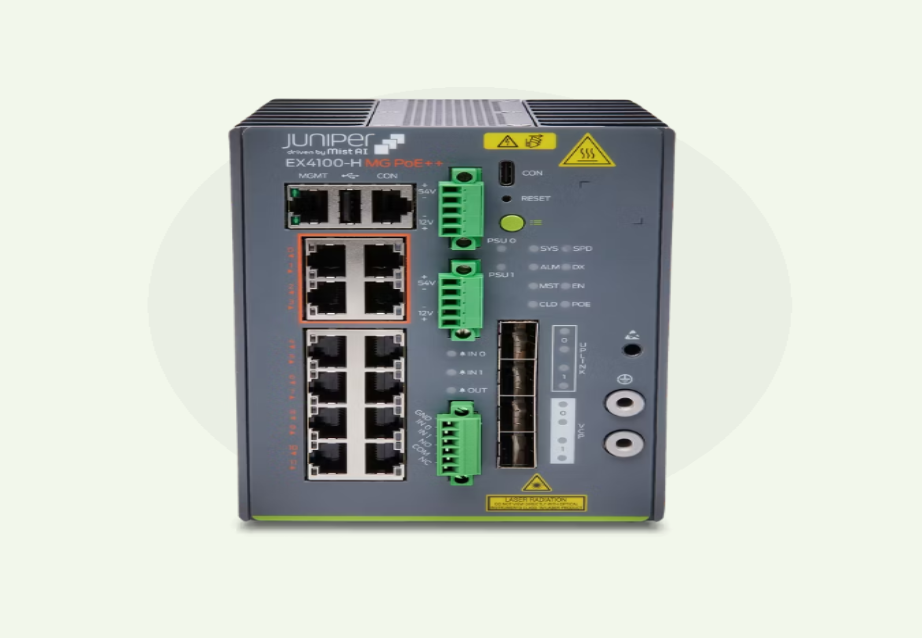

EX4100-H series
EX4100-H series

EX4100-H series

share to:

Key features of EX4100-H Line include:
• Cloud-native,
AI-Native switches with Wired Assurance and
Marvis VNA
• Fanless with an extended operating temperature range of -40°C to +75°C for harsh
environments
• Ruggedized, compact form factor for easy installation in tight spaces
• Compliant to IP30 and supports a relative humidity range of 5% to 95%, ensuring non
condensing operation
• Meets many industrial certifications, making it suitable for use in a wide range of
applications that need high tolerances for constant vibrations, shocks, and
electromagnetic immunity
• Dry contact alarm: two alarms in and one alarm out to signal external sensors
• Dual redundant PSUs: two AC PSUs or two DC PSUs or one AC and one DC PSU
• Ethernet VPN-Virtual Extensible LAN (
EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)
• Switch-to-switch encryption using Media Access Control Security (MACsec) AES256
• IEEE 802.3bz Multigigabit
• IEEE 802.3bt Power over Ethernet Plus (PoE++)
• Flow-based telemetry to monitor traffic flows for anomaly detection and the ability to
measure packet delays and report drop reasons
• Precision Time Protocol–Transparent Clock
• 10-member Virtual Chassis support

Chat Now Contact
Introduction Gallery Related Products

Introduction

The EX4100-H series includes the following models:

The EX4100-H-12MP provides four 100MB/1GbE/2.5GbE and eight 10MB/100MB/1GbE PoE++ access ports, each delivering up to 90W of power, for a total PoE budget of 360W using two power supplies.

The EX4100-H-24MP provides eight 100MB/1GbE/2.5GbE and sixteen 10MB/100MB/1GbE PoE++ access ports, each delivering up to 90W of power, for a total PoE budget of 370W using two power supplies.

The EX4100-H-24F provides 24 100MB/1GbE access ports and supports two power supplies for redundancy.

For the EX4100-H-12MP, two AC PSUs, two DC PSUs, or a combination of one AC PSU and one DC PSU can be used simultaneously. The PSU is external and includes two 1/10GbE SFP+ fixed uplink ports and two 1/10GbE SFP+ ports to support Virtual Chassis connections, which can be reconfigured as Ethernet ports for uplink connections.

For the EX4100-H-24MP and EX4100-H-24F, two AC PSUs, two DC PSUs, or a combination of one AC PSU and one DC PSU can be used simultaneously. The PSU is internal, hot-swappable, and field-replaceable (FRU). It includes four 1/10GbE SFP+ fixed uplink ports and four 1/10GbE SFP+ ports to support Virtual Chassis connections, which can be reconfigured as Ethernet ports for uplink connections. The EX4100-H offers a full suite of Layer 2 and Layer 3 features, supporting a wide range of deployments, including campus and branch offices. As scale requirements increase, Juniper Networks’ Virtual Chassis technology allows you to seamlessly interconnect and manage up to 10 EX4100-H switches as a single device, providing a scalable, pay-as-you-grow solution for expanding network environments.

The EX4100-H switches offer the same features as the EX4100 series switches. They also include high availability (HA) features such as redundant, hot-swappable power supplies to ensure maximum uptime. Furthermore, the 12-port Multigigabit Ethernet EX4100-H switches offer standards-based 802.3af/at/bt (PoE/PoE+/PoE++), delivering up to 90W of power on any access port. You can configure the EX4100-H switch to rapidly provide PoE power to connected devices within seconds of booting, minimizing downtime and ensuring fast performance.
