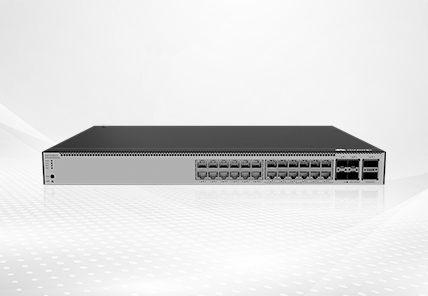

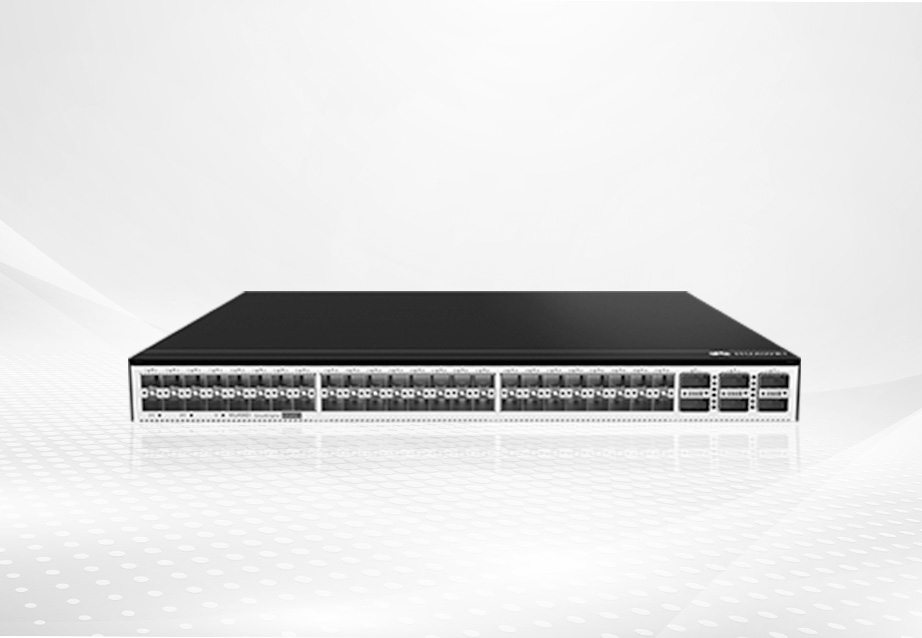

CloudEngine S6730-H-V2 Series 10 GE Switches
The CloudEngine S6730-H-V2 series offers a range of next generation 10 GE routing switches with 24, 28, or 48 downlink ports plus 6 x 40 GE uplink ports — which can be expanded to 100 GE through licensing — and one extended slot.
CloudEngine S6730-H-V2 Series 10 GE Switches
The CloudEngine S6730-H-V2 series offers a range of next generation 10 GE routing switches with 24, 28, or 48 downlink ports plus 6 x 40 GE uplink ports — which can be expanded to 100 GE through licensing — and one extended slot.
Built on Huawei’s unified software platform , the series offers a range of various Intent-Driven Network (IDN) features, including support for Virtual Extensible Local Area Network (VXLAN) technology, which builds one network for multiple purposes. Meanwhile, a free mobility feature ensures a consistent user experience.
| Product Model | CloudEngine S6730-H24X6C-V2 | CloudEngine S6730-H24X6C-TV2 | CloudEngine S6730-H48X6C-V2 | CloudEngine S6730-H48X6C-V2 | CloudEngine S6730-H28X6CZ-V2 | CloudEngine S6730-H28X6CZ-TV2 | CloudEngine S6730-H48X6CZ-V2 | CloudEngine S6730-H48X6CZ-TV2 |
| Forwarding Performance | 490Mpps | 490Mpps | 490Mpps | 490Mpps | 490Mpps | 490Mpps | 490Mpps | 490Mpps |
| Switching Capacity2 | 1.68 Tbit/s/2.4 Tbit/s | 1.68 Tbit/s/2.4 Tbit/s | 2.16 Tbit/s/2.4 Tbit/s | 2.16 Tbit/s/2.4 Tbit/s | 1.76 Tbit/s/2.4 Tbit/s | 1.76 Tbit/s/2.4 Tbit/s | 2.16 Tbit/s/2.4 Tbit/s | 2.16 Tbit/s/2.4 Tbit/s |
| Fixed Ports | 24 x 10 GE SFP+, 6 x 40/100 GE QSFP28 | 24 x 10 GE SFP+, 6 x 40/100 GE QSFP28 | 48 x 10 GE SFP+, 6 x 40/100 GE QSFP28 | 48 x 10 GE SFP+, 6 x 40/100 GE QSFP28 | 28 x 10 GE SFP+, 6 x 40/100 GE QSFP28 | 28 x 10 GE SFP+, 6 x 40/100 GE QSFP28 | 48 x 10 GE SFP+, 6 x 40/100 GE QSFP28 | 48 x 10 GE SFP+, 6 x 40/100 GE QSFP28 |
| Extended Slots | NA | NA | NA | NA | 1*extended slot | 1*extended slot | 1*extended slot | 1*extended slot |
| Flexible Networking | Default 40 Gbit/s uplink port can be upgraded to 100 GE through licensing. | |||||||
| iPCA | Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels | |||||||
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
|||||||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
|||||||
